From REST or HTTP Service

Contents

This option allows the addition of a proxy project to existing backend REST or HTTP services which can be used for request types: REST or HTTP respectively.

Adding the Project

To add a REST/HTTP Service project, click the

Add API Project button and click the From REST/HTTP Service option.

Figure 1: Navigating to create project from REST/HTTP Service

Providing Basic Attributes

Enter values for attributes in the New Backend Service dialog box as described in the table below.

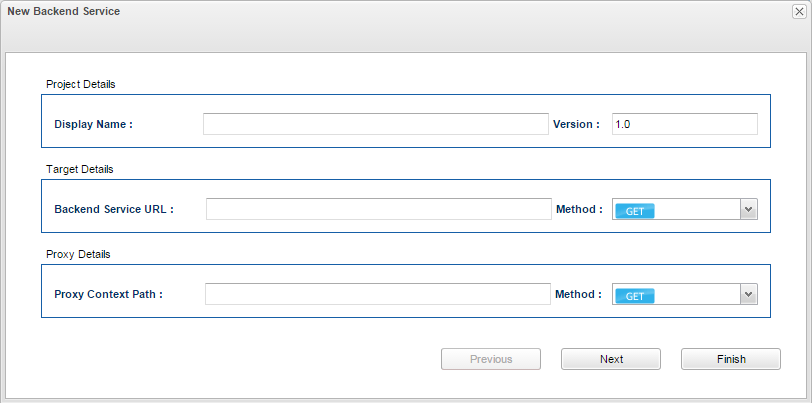

Figure 2: New Backend Service dialog box to provide details of REST/HTTP Service

Property	Description
Display Name	A name to act as Project ID to identify the project.
Version	Revision number of the project. For example, 1.0 for a project being newly added and 1.1 or 2.0 for the next revision.
Backend Service URL	URL of the service provider from where data is to be fetched after implementing the policies that are defined.
Method	HTTP method used by the back end Service to send requests by using the following methods: GET: Requests data from a specified resource POST: Submits data to be processed to a specified resource PUT: Uploads a representation of the specified URI DELETE: Deletes the specified resource PROXY: The same method that the client uses to invoke the proxy server will be used to invoke the target server. Figure 3: Options of HTTP Method
Proxy Context Path	This is a text used to combine with the version number to act as an identifier to map a deployed project. The proxy resolves context path mappings prior to applying any matching policies (explained in subsequent topics). Proxy Context Path combined with version number must be unique for every project. Different versions of the same project (same project name with different version number) can have the same Context Path.
Method	HTTP method used by the application to send requests to the proxy by using the methods GET/POST/PUT/DELETE as explained previously.

After entering the above details, you may click Finish to create the project, or click Next to:

Add Security policy or to add Quota policy.
Attach an existing product to this new project.

API Customization - Enabling Security and Quota

Generally, policies are created for a project after adding the project, while Security policy and Quota policy can be created while creating a project as well. To do this, click Next from the basic properties screen and select the attributes accordingly.

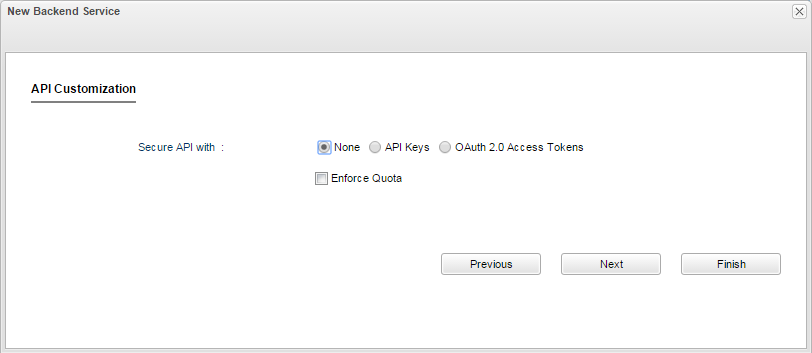

Figure 4: Options to provide security attributes and enforce Quota

Property

Description

Secure API with

Enables security to the requests with the following security options:

None: No authentication checks will be done.
API Keys: Checks for the authentication key which gets generated for API Product (as explained in the end of the "Adding Products, Clients and Client Subscriptions" section in the Quick Start page.
OAuth 2.0 Access Tokens: Protocol used for authentication and authorization.

Enforce Quota

Whether or not to enable the default Quota policy.

After entering the above details, click:

Finish to create the project
Next to attach a product to this new project.

To amend basic details entered, click the Previous button to move back to the first screen.

Product Mapping - Attaching a Product to the Project

The existing projects get reflected in the Attach to API Policy drop-down list. Select a product to attach it to the project.

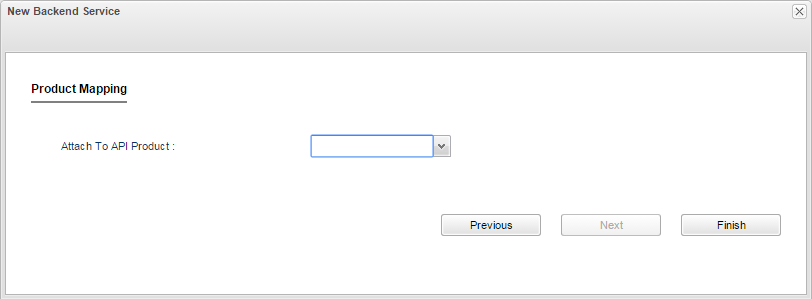

Figure 4: Option to attach existing product(s) to the project

To amend the Security/Quota details entered, click the Previous button to move back to the screen where the details can be reentered.
